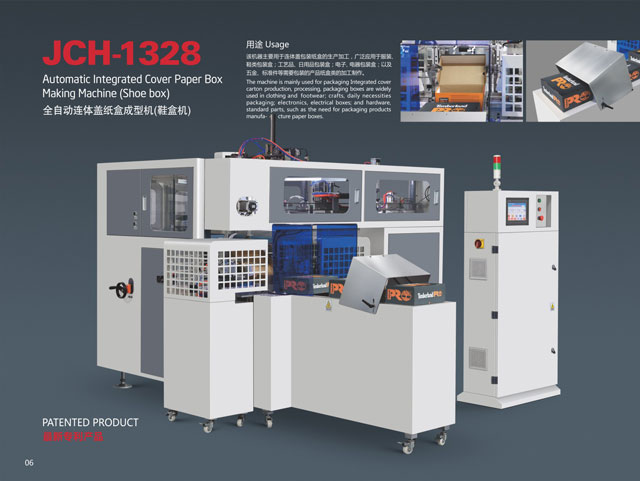

JCH-1328全自動連體蓋紙盒成型機(鞋盒機)

Automatic Integrated Cover Paper Box Making Machine (Shoe box)

用途Usage:

該機器主要用於連體蓋包裝紙盒的生產加工，廣泛應用於服裝、鞋類包裝盒；工藝品、日用品包裝盒；電子、電器包裝盒；以及五金、標準件等需要包裝的產品紙盒類的加工製作。

The machine is mainly used for packaging Integrated cover carton production, processing, packaging boxes are widely used in clothing and footwear; crafts, daily necessities packaging; electronics, electrical boxes; and hardware, standard parts, such as the need for packaging products manufa-cture paper boxes.

性能特點 Features:

1. 紙板自動進料，連貫作業進紙、包邊、折耳及折入成型動作一次性完成；

2. 采用PLC可編程序控製器、光電跟蹤係統、氣源檢測運行係統、觸摸屏人機界麵，實施連體蓋

  紙盒成型全過程自動化；

3. 紅外安全保護係統，確保人員操作安全；

4. 自動故障診斷功能；

5. 自動快速調模功能；

6. 換模采用手控形式，具備記憶功能；

7. 機架籠式設計，整體加工，分組式結合；

8. 整機占地麵積小，穩定性佳。

9. 自動蓋盒功能；

10. 循環換料功能。

1. Cardboard automatic feed, feed coherent operation, edging, folding side and folded into the molding action once completed;

2. PLC programmable controller, photoelectric tracking system, gas source detection operation system, touch screen man machine interface, achieve full aotumactic cover injoined box forming process;

3. Infrared security system to ensure safe operation personnel;

4. Automatic fault diagnosis function;

5. Automatic quick die adjustment device;

6. The replacement of mould is by manual and have memory function.

7. Rack cage design, the overall processing, packet type combination;

8. Small machine footprint, good stability.

9. Automatic cover box function;

10. Circulation switch function.

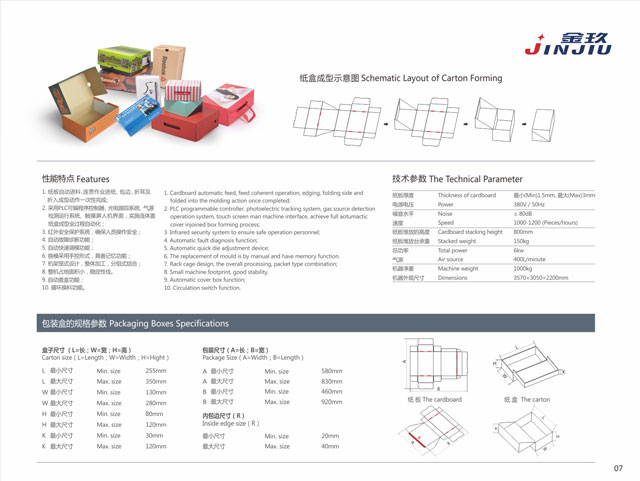

技術參數The Technical Parameter

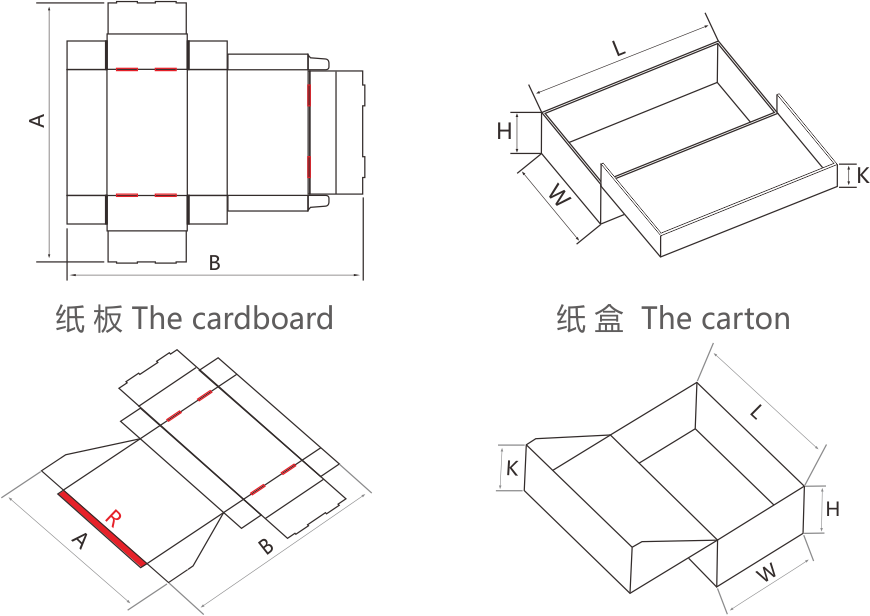

包裝盒的規格參數Packaging Boxes Specifications:

盒子尺寸 （L=長；W=寬；H=高）

Carton size（L=Length；W=Width；H=Hight）

包裝尺寸（A=長；B=寬）

Package Size（A=Width；B=Length）

內包邊尺寸（R）

Package Size（A=Width；B=Length）

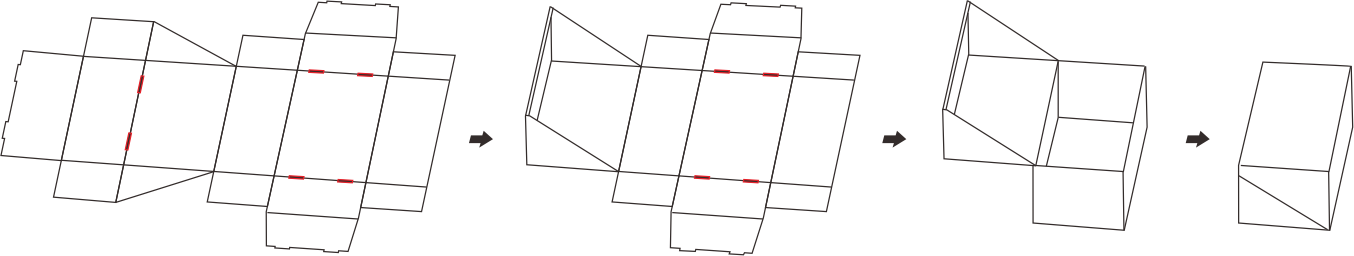

紙盒成型示意圖Schematic Layout of Carton Forming
